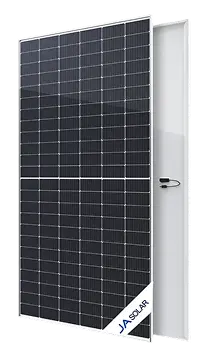

JA Solar JAM72S30 560W–585W Bifacial Solar Panel
High Output. Low Loss. Built for Long-Term Efficiency
The JA Solar JAM72S30 bifacial half-cell module combines advanced PERC technology with a durable design made for daily use. With output ranging from 560W to 585W, this panel offers more energy per square meter.
Why Select the JA Solar JAM72S30 Sequence?
More Energy, Less Space
- Power ratings from 560W to 585W
- Highly systematic up to 22.1%
- Half-cell design improves performance in shaded or cloudy conditions
Designed to Withstand Harsh Environments
- Supports up to 5400Pa snow load and 2400Pa wind load
- Operates from –40°C to +85°C
- IP68-rated junction box for long-term weather guard
Lower Degradation, Longer Performance
- 12-year product warranty
- 25-year linear power warranty
- Just 0.55% annual power loss
→ Maintains over 84.8% power after 25 years
Key Performance Specs (STC)
Model
Power (Pmax)
Efficiency
Voc (V)
Isc (A)
Vmp (V)
Imp (A)
JAM72S30-560/LR/1500V
560W
21.2%
48.59
14.25
41.49
13.50
JAM72S30-565/LR/1500V
565W
21.4%
49.09
14.31
41.68
13.56
JAM72S30-570/LR/1500V
570W
21.6%
49.65
14.37
41.87
13.62
JAM72S30-575/LR/1500V
575W
21.7%
50.13
14.44
42.06
13.67
JAM72S30-580/LR/1500V
580W
21.9%
50.31
14.50
42.24
13.73
JAM72S30-585/LR/1500V
585W
22.1%
50.49
14.58
42.42
13.79
LR5-72HTD-565M
565W
21.9%
51.85
13.93
43.40
13.02
LR5-72HTD-565M
565W
21.9%
51.85
13.93
43.40
13.02
LR5-72HTD-565M
565W
21.9%
51.85
13.93
43.40
13.02
Power tolerance: 0~+5W
Temperature coefficient of Pmax: –0.35%/°C
NOCT: 45±2°C
System voltage: 1500V DC
Built to Last, Easy to Install
Feature
Specification
Dimensions
2333 × 1134 × 30 mm
Weight
28 kg
Cell Count
144 (6×24) half-cut monocrystalline
Front Glass
3.2 mm coated tempered glass
Junction Box
IP68 rated, 3 diodes
Frame
Anodized aluminum alloy
Cable Length
Portrait: 300/300mm ±100mm; Landscape: 1400/1400mm ±100mm
Installation & Maintenance Tips
Keep your JA Solar panels in top shape with these simple habits:
- Pick the right spot
Install your panels where they’ll get full sunlight. A little light on the back side boosts performance, too. - Wipe them down gently
Use soft water and a clean cloth to remove dirt. No harsh scrubbing or strong chemicals needed. - Watch the system from your phone
Use your inverter’s app to track performance. It’s an easy way to catch any issues early. - Plan a yearly checkup
A quick inspection once a year can keep everything running smoothly and help prevent future problems.
