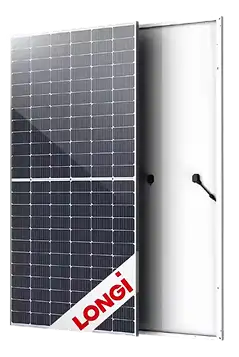

LONGi 565W–585W Monofacial Solar Panel
- Home
- longi lR5
Built for Daily Power. Designed for the Long Run.
The LONGi LR5-72HTH solar panel is all about efficient performance. It has power ratings between 565 and 585 watts. This panel gives you solid energy output without occupying extra space on your roof. If you’re upgrading your current system or starting fresh, it’s a dependable choice that works hard every day for your ease.
Why Homeowners and Installers Like the LR5-72HTH Panel
More Power, Less Waste
- Each panel delivers between 565W and 585W
- High efficiency up to 22.6% means more energy from the same sunlight
- Created with 144 half-cut monocrystalline cells to terminate energy loss from shade or dust
- Sleek and modern design that blends easily with the rooftop.
Built to Handle Real-World Weather
- Tough enough to handle heavy snow (up to 5400Pa) and strong winds (up to 2400Pa)
- Performs reliably from freezing –40°C to scorching +85°C
- Protected with an IP68-rated junction box that keeps moisture and dirt out
Long-Term Performance You Can Count On
- 15-year product warranty covers materials and workmanship
- 25-year linear power warranty ensures steady performance
- Only 1.5% power loss in the first year
→ After 25 years, it still holds over 88.9% of its original power output
Panel Output Specs (Standard Test Conditions)
Model
Power (Pmax)
Efficiency
Voc (V)
Isc (A)
Vmp (V)
Imp (A)
LR5-72HTH-565M
565W
21.9%
51.76
14.01
43.61
12.96
LR5-72HTH-570M
570W
22.1%
51.91
14.07
43.76
13.03
LR5-72HTH-575M
575W
22.3%
52.06
14.14
43.91
13.10
LR5-72HTH-580M
580W
22.5%
52.21
14.20
44.06
13.17
LR5-72HTH-585M
585W
22.6%
52.36
14.27
44.21
13.24
Nominal Operating Cell Temperature (NOCT): 45±2°C
Straightforward Specs That Make Installation Easier
Detail
Info
Size
2278 × 1134 × 30 mm
Weight
27.2 kg
Cell Count
144 (6×24) half-cut mono PERC
Glass
3.2 mm tempered, coated
Frame
Anodized aluminum alloy
Junction Box
IP68 rated, 3 diodes
Cable
4mm², +400/–200mm (±1400mm adjustable)
Connectors
Stäubli MC4 compatible
Origin
China
Easy Maintenance Tips That Save Time
Install it right
Mount your panels where sunlight hits directly during the day. That helps you get full power without any waste.Check in from your phone
Most solar inverters come with apps now. Use them to watch your system’s daily performance and catch problems early.Book a yearly checkup
A simple inspection once a year helps avoid issues and keeps your system working at its best.
Pair It With the Right Battery for Better Backup
Need power at night or during outages? A reliable battery makes all the difference. Struggling to find the best battery? The Beyond Green Solar team is here to help you find the perfect match.
Reach out today to build a custom solar package that works for your home, your energy needs, and your budget.
